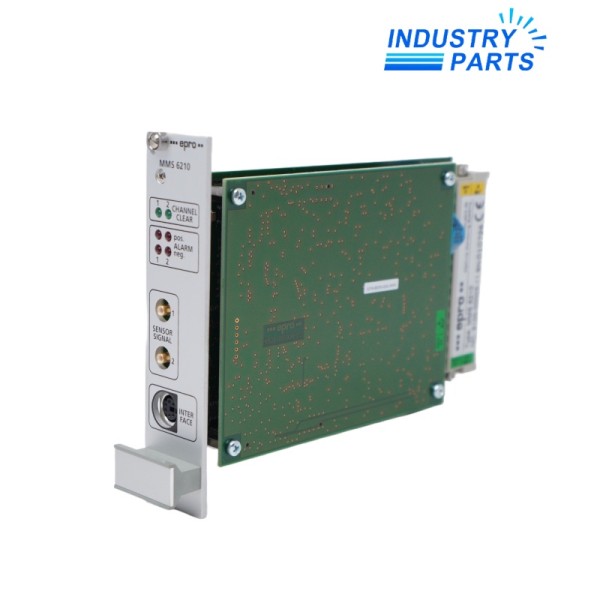

Emerson EPRO MMS6210 Dual-Channel Shaft Displacement Monitor
A legacy MMS 6000 monitor for two independent eddy-current displacement channels in machinery-protection systems.
Product Profile
MMS6210 is a two-channel shaft-displacement monitor in the legacy EPRO MMS 6000 machinery-monitoring platform.
It accepts two independent eddy-current measurement chains and can be configured for axial movement or position, differential or thermal expansion, radial position and shaft bending.
The module provides local configuration through RS-232 and system communication through RS-485, with redundant supply inputs and self-monitoring functions.
Technical Data
| Manufacturer | Emerson EPRO |
|---|---|
| Exact model | MMS6210 |
| System family | MMS 6000 |
| Product type | Dual-channel shaft displacement monitor |
| Measurement channels | Two independent eddy-current inputs |
| Supported sensor family | PR6422 through PR6426 with the applicable CON converter |
| Measurement modes | Axial movement or position, differential and thermal expansion, radial position, shaft bending |
| Local interface | RS-232 |
| System communication | RS-485 |
| Supply arrangement | Redundant supply inputs |
| Service characteristic | Replaceable during operation when the system procedure permits |
| Configuration controls | Password-protected operating levels and channel self-checking |
System Role
Two independent channels support paired or separate displacement measurements.
Built-in linearization supports the configured eddy-current measurement chain.
RS-232 and RS-485 paths support local setup and system data access.
Self-checking supervises sensor signals, cabling, supply windows and configuration.
Compatibility
- Back up the parameter set, range, sensitivity, units and alarm values before exchange.
- Record both sensor and CON converter identities and their channel wiring.
- Confirm redundant supply and RS-485 addressing before returning the module to the rack.
- Validate both channels, current or voltage outputs, alarms, communication and the machine-protection proof test.
Applications
- Turbine axial position and differential-expansion monitoring.
- Radial shaft position or shaft-bending measurement.
- Inputs to machinery protection, analysis, plant control and diagnostic systems.
FAQ
Can MMS6210 be replaced without its configuration record?
Avoid doing so. Preserve each channel range, sensitivity, unit, alarm level, identifier and communication setting before service.
Which sensors can be used with MMS6210?
The legacy manufacturer documentation identifies PR6422 through PR6426 eddy-current systems with the applicable CON converter; exact chain compatibility still requires review.
Can MMS6210 be removed while the rack is operating?
The platform supports replacement during operation under documented conditions, but site redundancy, channel bypass and the approved maintenance procedure must be confirmed first.
What should accompany an MMS6210 quotation?
Provide the module label, firmware or revision marks, rack and slot, both sensor chains, output use, RS-485 address and configuration backup.
What commissioning is required after installing MMS6210?
Restore the approved parameters, verify both channel signals and outputs, test communication and alarms, and complete the site protection proof test.
