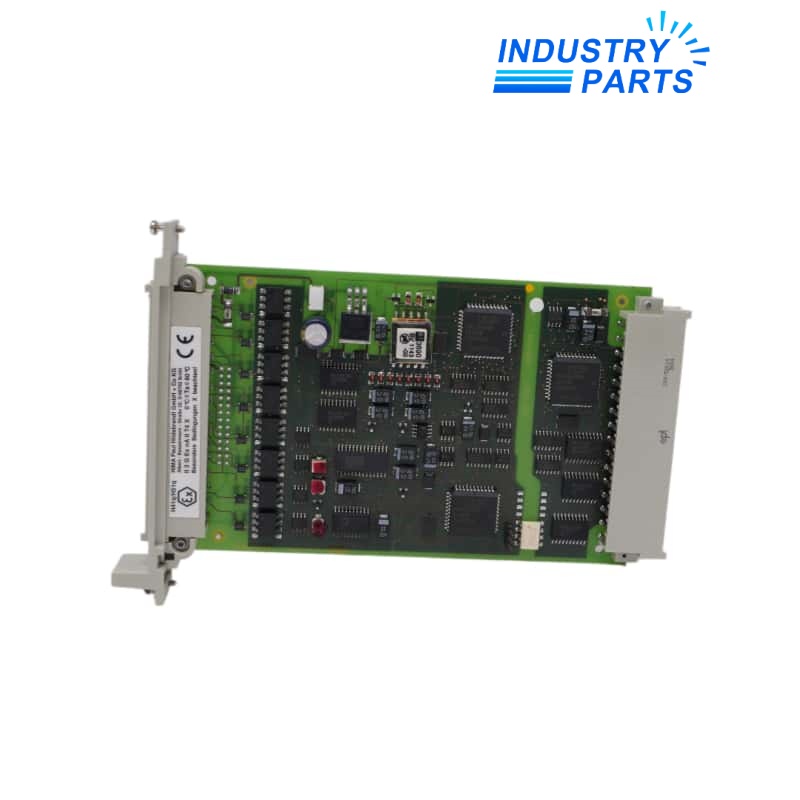

HIMA F6217 Safety Analog Input Module
An eight-channel HIQuad analog input module for safety-related current and voltage acquisition with line monitoring.
Key Information
F6217 is an eight-channel analog input module for HIMA HIQuad H41q and H51q safety systems. Its certified channel set accepts current and voltage signals for safety-related process measurement.
The certified product description identifies 0/4–20 mA and 0–5/10 V signal ranges, 12-bit conversion, short-circuit monitoring and open-circuit monitoring. The complete module revision and the installed HIQuad configuration must remain part of the replacement record.
Functions
- Acquires eight analog process channels in a HIQuad safety controller.
- Supports safety-related applications up to SIL 3 within the certified system configuration.
- Handles both current and voltage input types documented for the module.
- Provides line diagnostics for short circuit and open circuit conditions.
- Interfaces the field signals to the H41q or H51q I/O architecture under the approved project configuration.
Specifications
| Manufacturer | HIMA Paul Hildebrandt GmbH |
|---|---|
| Model | F6217 |
| Product Family | HIQuad H41q / H51q |
| Module Type | Safety-related analog input module |
| Analog Inputs | 8 channels |
| Safety Integrity | SIL 3 within the certified HIQuad system |
| Current Signal Ranges | 0–20 mA and 4–20 mA |
| Voltage Signal Ranges | 0–5 V and 0–10 V |
| Resolution | 12 bit |
| Line Diagnostics | Short-circuit and open-circuit monitoring |
| Protection Principle | Protective separation identified in the certified module description |
| System Position | HIQuad I/O module position |
| Hazardous-Location Marking | Verify the exact installed revision and certificate marking |
| Revision Control | Match the full module label and certified revision list |
Installation
- Export the safety application, I/O assignment, scaling, diagnostic state and proof-test record before removal.
- Photograph the complete F6217 label, rack position, terminal assembly and every field-wire identifier.
- Place affected safety instrumented functions in the approved safe state and follow the site bypass and permit procedure.
- After fitting, verify channel type, range, scaling, line monitoring and field-loop polarity before enabling each point.
- Close the work with diagnostics, loop tests and the validation required by the site safety lifecycle.
Lifecycle
- Keep the full F6217 hardware revision with the asset record; certification applies to documented device and revision combinations.
- Trend short/open-circuit diagnostics so field-wiring faults are not misclassified as module faults.
- Preserve the application checksum, proof-test results and management-of-change approval after any exchange.
- Treat any alternative analog input module as an engineered safety-system migration, not a drop-in visual substitute.
FAQ
What evidence should accompany an F6217 quotation for a live safety system?
Provide the complete F6217 label, hardware revision, H41q or H51q rack identity, terminal assembly, application checksum, channel ranges and current proof-test record.
Can F6217 current and voltage channels be exchanged without an engineering review?
No. The configured signal type, range, scaling, diagnostics and trip logic must be verified channel by channel before the altered loop is returned to service.
How should an F6217 replacement be handled when the controller is redundant?
Use the approved HIQuad maintenance procedure to assess channel availability, safe state and synchronization; redundancy does not remove the need for a controlled bypass and validation.
What should be tested after installing F6217?
Inject representative low, normal and high signals, verify engineering-unit scaling, prove short/open-circuit diagnostics and confirm every affected safety action.
Why is the revision on an F6217 label important?
The certified system scope is revision-controlled, so the hardware revision must agree with the rack documentation, approved application and certificate record.
