Honeywell CC-PAIH51 Analog Input Module

Honeywell CC-PAIH51 Analog Input Module

Item NO.: CC-PAIH51
Inquiry

Warranty: 1 year


Condition : brand new in factory sealed box


Email: sales@mvme.cn


Chat online: +86 18030175807

Detail

  • Product NameHoneywell CC-PAIH51 Analog Input Module
  • Item NO.CC-PAIH51
  • Weight0.0000 kg = 0.0000 lb = 0.0000 oz
  • CategoryDCS
  • BrandHoneywell
  • Creation Time2024-12-31
  • Honeywell Series C 16-channel high-level analog input module with HART communication.
Honeywell Series C HART Analog Input

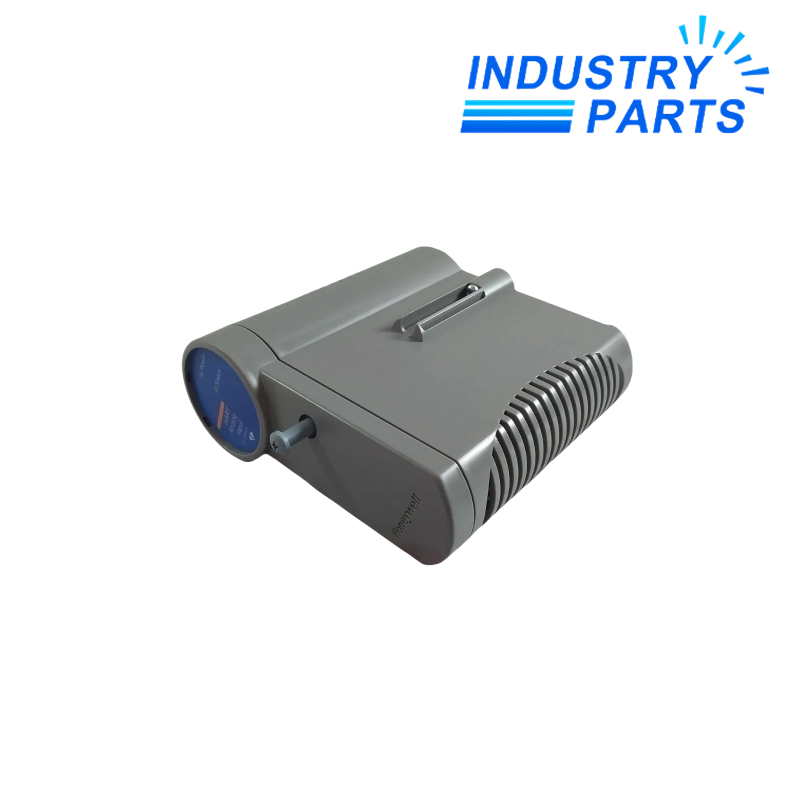

Honeywell CC-PAIH51 Analog Input Module

A 16-channel high-level analog input I/O module for 4–20 mA field signals, with HART status and configuration support.

Key Information

Parameter Official specification
Model CC-PAIH51
Product family Honeywell Series C I/O
Module type High-Level Analog Input with HART
Input channels 16, all single-ended
Signal range 4–20 mA through 200 Ω
HART capability HART status and configuration; supports HART-capable multivariable instruments
Compatible IOTAs CC-TAIX51 non-redundant 6-inch; CC-TAIX61 redundant 12-inch

Functions

CC-PAIH51 accepts high-level current inputs from two-wire or self-powered transmitters and sensing devices. Honeywell documents the following capabilities:

  • Extensive module self-diagnostics for channel and module health monitoring.
  • Optional redundant operation when installed with the specified redundant IOTA.
  • Integrated non-incendive field power; external user-supplied field power is not required for the supported arrangement.
  • HART communication for instrument status and configuration.
  • Fast loop scan with a documented 50 ms scan time.

Specifications

Parameter Official value
Input type Current; 2-wire or self-powered transmitters
Channels 16 single-ended channels
Input range 4–20 mA through 200 Ω
A/D resolution 16 bits
Scan time 50 ms
Accuracy at 23.5 ± 2 °C ±0.075% of full scale
Accuracy from 0 to 60 °C ±0.15% of full scale
Common-mode rejection 70 dB, DC to 60 Hz with 500 Ω source imbalance
Common-mode voltage −6 to +5 V peak, DC to 60 Hz
Normal-mode rejection at 60 Hz 19 dB
Input filter Single-pole RC, −3 dB at 6.5 Hz
Maximum normal-mode input ±30 V
Channel-to-channel crosstalk −60 dB

Installation

Select the IOTA according to the required architecture: CC-TAIX51 for a non-redundant 6-inch arrangement or CC-TAIX61 for a redundant 12-inch arrangement. The field circuits are individually current-limited and documented for Class I, Division 2 non-incendive use.

Engineering note: verify IOTA selection, field wiring, controller release and hazardous-area requirements against the Honeywell project documentation before installation or replacement.

Lifecycle

CC-PAIH51 belongs to the Honeywell Series C I/O platform. Availability, firmware support and approved replacement paths can vary by Experion release and project configuration; confirm the current lifecycle position with Honeywell documentation before procurement.
