Multi-signal analog acquisition
Supports electrical and temperature sensors within one eight-channel module.

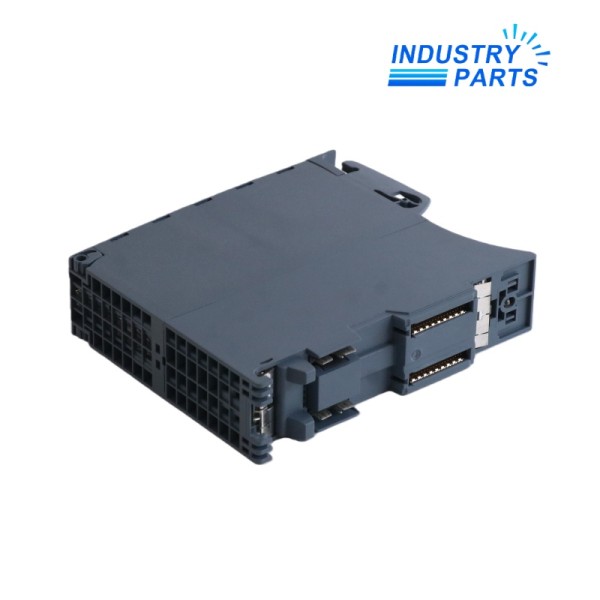

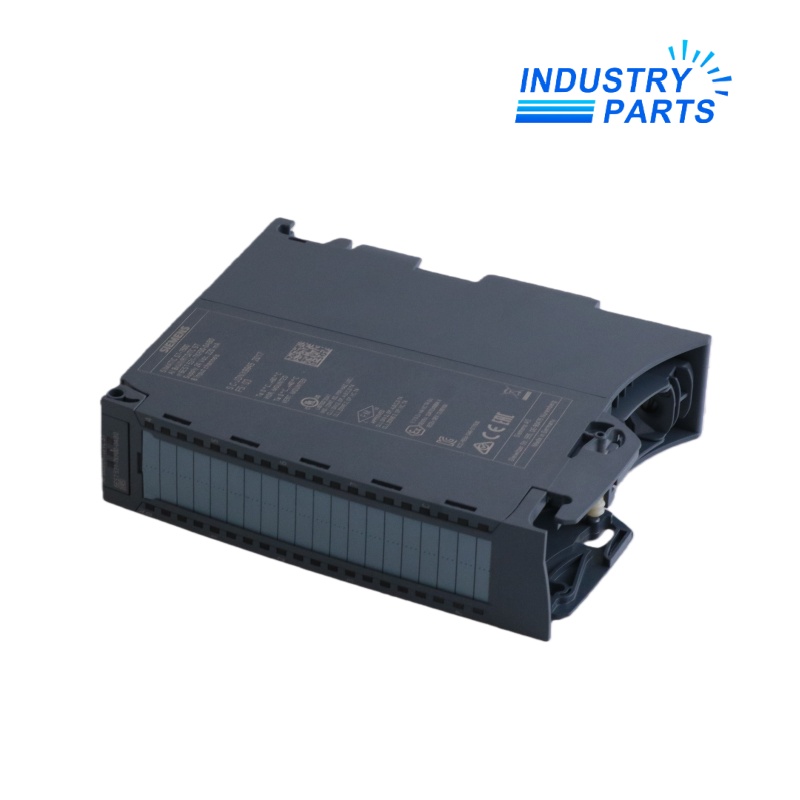

Siemens 6ES7531-7KF00-0AB0 Analog Input Module
Item NO.: 3500053
Warranty: 1 year
Condition : brand new in factory sealed box
Email: sales@mvme.cn
Chat online: +86 18030175807
Detail
- Product NameSiemens 6ES7531-7KF00-0AB0 Analog Input Module
- Item NO.3500053
- Weight0.3000 kg = 0.6614 lb = 10.5822 oz
- CategoryPLC
- BrandSiemens
- Creation Time2025-12-26
SIMATIC S7-1500 SM 531AI 8xU/I/RTD/TC ST Analog Input Module
EIGHT UNIVERSAL INPUTS · FOUR RTD CHANNELS · STANDARD CLASS
Siemens 6ES7531-7KF00-0AB0 SIMATIC S7-1500 Eight-Channel Universal Analog Input Module
An eight-channel standard analog input module for voltage, current, resistance, RTD and thermocouple measurements.
PRODUCT CONTEXT
Product Profile
6ES7531-7KF00-0AB0 provides eight universal analog inputs for voltage, current, resistance, RTD and thermocouple signals. Siemens identifies 16-bit resolution, 0.3% accuracy and one group of eight channels.
Four channels support RTD measurement. The module also provides diagnostics and hardware interrupts within a 10 V common-mode boundary.
CONTROLLED DATA
Technical Data
Manufacturer
Siemens
Exact model
6ES7531-7KF00-0AB0
Product family
SIMATIC S7-1500 SM 531
Module designation
AI 8xU/I/RTD/TC ST
Channels
8
Supported measurements
Voltage, current, resistance, RTD, thermocouple
RTD channels
4
Resolution
16 bit
Accuracy
0.3%
Channel grouping
One group of eight
Common-mode voltage
10 V
Diagnostics
Supported
Hardware interrupts
Supported
Front connector
Ordered separately
OPERATING ROLE
System Role
01Multi-signal analog acquisition02Four RTD measurement paths03Controller event integration04Separate front-connector choice
Four RTD measurement paths
Allocates half of the channel capacity to configured RTD measurements.
Controller event integration
Diagnostics and hardware interrupts expose supported channel conditions.
Separate front-connector choice
Permits screw-terminal or push-in connection hardware ordered for the installation.
SELECTION BOUNDARY
Compatibility
6ES7531-7KF00-0AB0
Do not substitute the similarly numbered HS or HF executions without checking timing, accuracy and supported sensor functions.
SIMATIC S7-1500 SM 531
Retain the installed host, project and connection evidence that defines the approved use of this execution.
Verified field fit
Complete the model-specific checks described in the service sequence before return to operation.
FIELD USE
Applications
Mixed analog panels
Consolidating voltage, current and temperature signals in one S7-1500 slot.
Process instrumentation
Acquiring eight documented analog points with standard-class performance.
Temperature-intensive machines
Using up to four RTD channels while retaining capacity for other supported signal types.
SurveyExport the channel map, ranges, sensor types, compensation settings and diagnostic configuration.TransferConfirm front-connector style and move shielded field wiring according to the approved terminal plan.ProveSimulate each signal class and verify scaling, fault behavior and hardware interrupts.
CUSTOMER QUESTIONS
FAQ
Q01
How does 6ES7531-7KF00-0AB0 differ from 6ES7531-7NF10-0AB0?
6ES7531-7KF00-0AB0 is the standard universal-input execution with RTD and thermocouple support, while 7NF10 is the high-speed voltage/current module.
Q02
How many RTD channels are available on 6ES7531-7KF00-0AB0?
Siemens publishes four RTD-capable channels within the eight-channel group.
Q03
Is a front connector supplied with 6ES7531-7KF00-0AB0?
No. The screw or push-in front connector is ordered separately, so the installed style must be identified.
Q04
What should accompany a 6ES7531-7KF00-0AB0 request?
Provide the exact label, TIA Portal hardware configuration, per-channel sensor list, ranges and connector style.
Q05
What acceptance checks suit 6ES7531-7KF00-0AB0?
Apply references appropriate to each configured signal type and verify scaled values, diagnostics and hardware interrupts.
INDUSTRIAL SOURCING SUPPORT
About IndustryParts
https://www.industryparts.com/Exact records support a cleaner quotation
IndustryParts prepares 6ES7531-7KF00-0AB0 enquiries around the complete manufacturer label, requested quantity and installed-system evidence. Share the application record that distinguishes this execution before a supply proposal is prepared.
Complete label retainedHost context reviewedQuantity linked to the enquiry
ENQUIRY INFORMATION
Request a model-specific quotation
Send the complete 6ES7531-7KF00-0AB0 label, requested quantity and delivery destination.
EMAILsales@mvme.cn
DIRECT CONTACTWhatsApp / Phone: +86 18030175807
