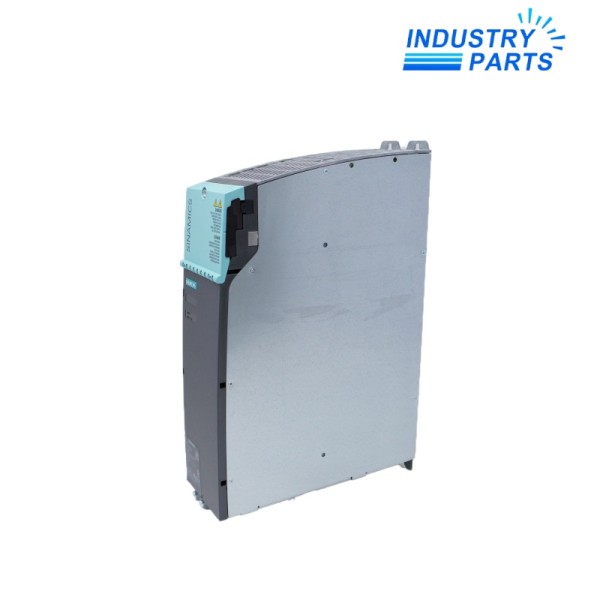

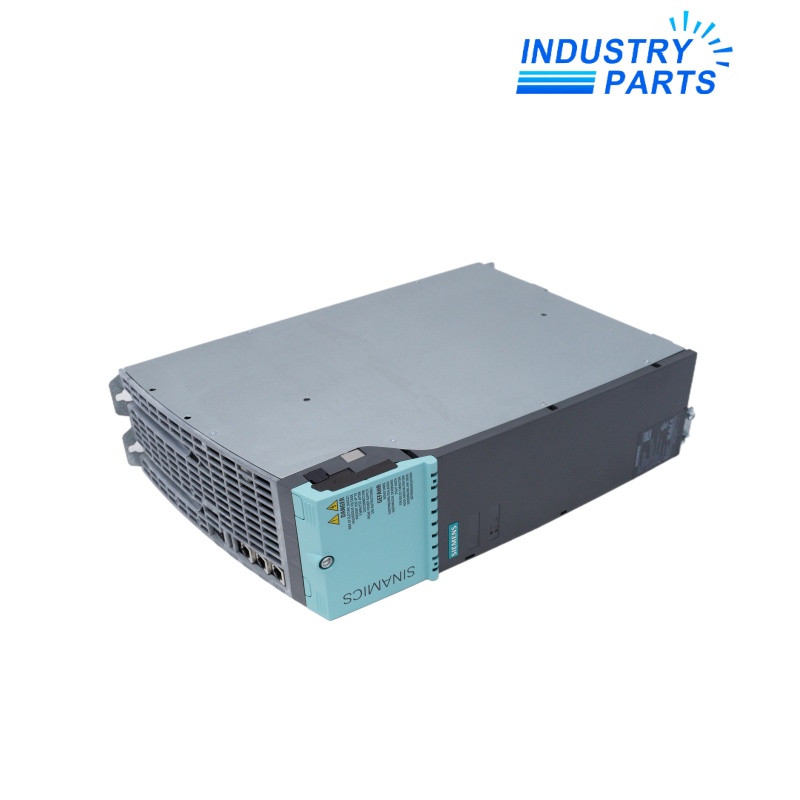

Siemens 6SL3130-7TE21-6AA4 SINAMICS S120 Active Line Module 16 kW
A 16 kW regenerative S120 infeed with 27 A DC-link output, a 100 mm booksize width and an included DRIVE-CLiQ cable.
BrandSiemens
Model6SL3130-7TE21-6AA4
LifecyclePM300 Active Product
01
Key Information
Siemens 6SL3130-7TE21-6AA4 is an internally air-cooled SINAMICS S120 Active Line Module for a 380–480 V three-phase line. It supplies the modular drive DC link at the 16 kW class and operates with the designated 16 kW Active Interface Module.
02
Functions
- Forms the controlled line-side infeed for a modular SINAMICS S120 drive group.
- Supports energy flow from the line to the DC link and regenerative feedback when the complete Active Line configuration is engineered accordingly.
- Provides a 600 V DC output rated at 27 A.
- Communicates within the drive system through the included DRIVE-CLiQ cable.
- Fits the 100 mm-wide booksize cabinet format and uses internal air cooling.
03
Specifications
| Manufacturer | Siemens |
|---|---|
| Order Number | 6SL3130-7TE21-6AA4 |
| Product Family | SINAMICS S120 |
| Module Type | Active Line Module |
| Nominal Line Input | 3-phase 380–480 V AC |
| Permissible Line Range | 342–528 V AC |
| Line Frequency | 47–63 Hz |
| DC-Link Output | 600 V DC |
| Rated DC Output Current | 27 A |
| Rated Line Current | 25 A |
| Rated Power | 16 kW |
| Matching Active Interface Module | 6SL3100-0BE21-6AB0 |
| Construction | Booksize |
| Cooling | Internal air cooling |
| Degree of Protection | IP20 / UL open type |
| System Cable | DRIVE-CLiQ cable included |
| Lifecycle | PM300 Active Product |
04
Installation
- Install with Active Interface Module 6SL3100-0BE21-6AB0 and the Siemens-specified line-side components.
- Maintain the required cabinet airflow for internal air cooling and the documented mounting clearances.
- Verify mains protection, conductor sizing, grounding, DC-link busbar arrangement and 24 V electronics supply before energizing.
- Retain the exact 6AA4 suffix in the project and hardware records.
- Complete line-infeed identification, DC-link and regenerative-function checks during commissioning.
05
Lifecycle
- Siemens lists the exact order number as a PM300 Active Product.
- The current Siemens S220/S120 compatibility list identifies this 16 kW article as compatible with CU320-3.
- Preserve the drive project, Active Interface Module identity and line-side design for future service work.
- Do not substitute a Smart Line Module or a different 16 kW suffix by rating alone.
- Review the current Siemens manuals whenever firmware, Control Unit or system topology changes.
