Provides the copper network connection for the 3500/22M TDI.
Technical Summary

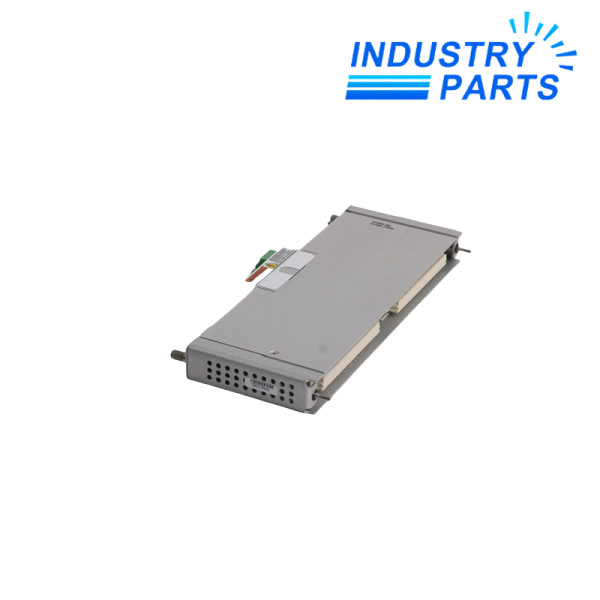

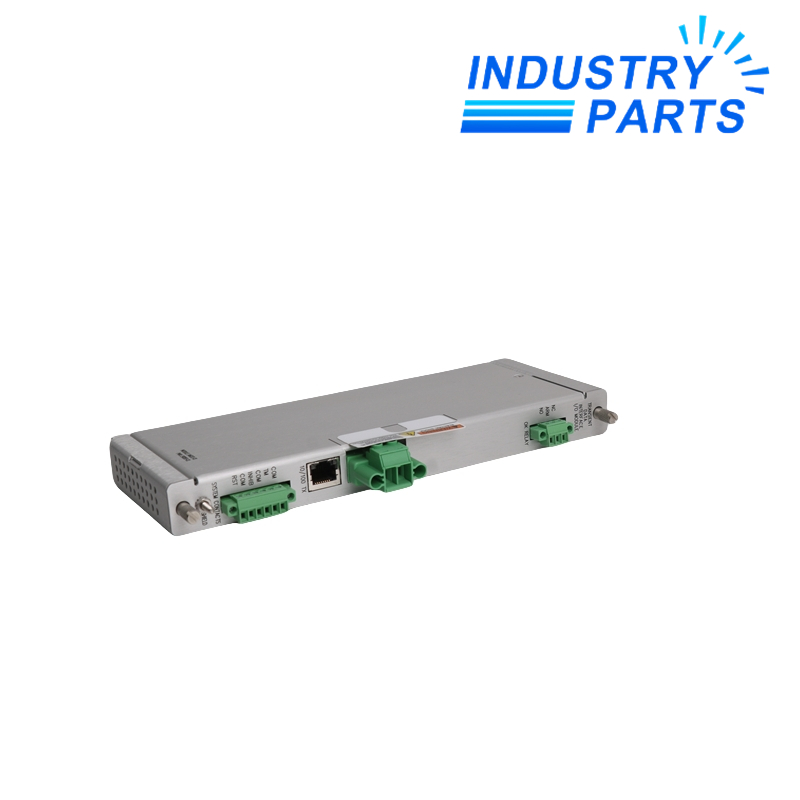

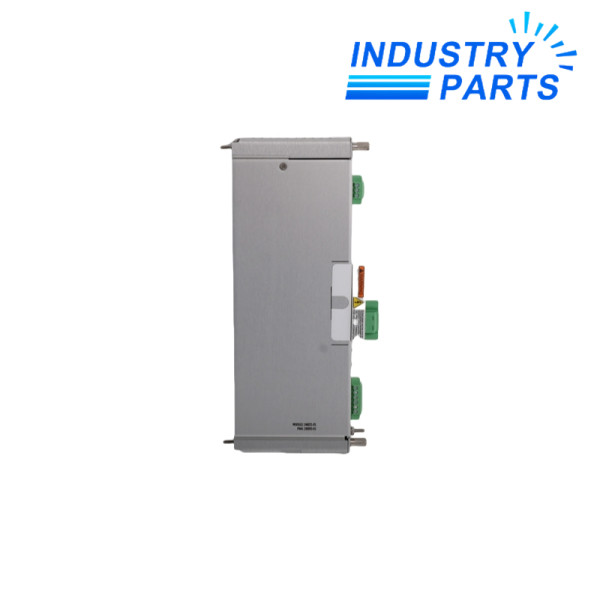

146031-01 is the copper Ethernet I/O module listed for the Bently Nevada 3500/22M Transient Data Interface. It provides the 10Base-T/100Base-TX network execution rather than the 100Base-FX fiber version.
The TDI occupies the rack interface position and connects the 3500 monitoring system to compatible host software and communications. The I/O module must be selected by media type and connector arrangement, not only by the 146031 base number.
Specifications
| Manufacturer | Baker Hughes Bently Nevada |
|---|---|
| Exact Model | 146031-01 |
| System | 3500 Series Machinery Protection System |
| Companion Module | 3500/22M Transient Data Interface |
| Product Type | Rear I/O module |
| Network Medium | Copper Ethernet |
| Ethernet Standards | 10Base-T and 100Base-TX |
| Cable Type | Shielded Category 5 or better copper Ethernet cable |
| Connector | RJ45 |
| Fiber Alternative | 146031-02, 100Base-FX fiber-optic I/O module |
| Gold-Connector Alternative | 146031-03 copper I/O module with gold-plated connectors |
Features
Supports both 10 Mbit/s and 100 Mbit/s twisted-pair Ethernet link modes.
Keeps the network interface separate from the front-panel TDI hardware.
Uses a distinct order number that prevents confusion with fiber and gold-connector variants.
Compatibility
- Pair 146031-01 with a compatible 3500/22M TDI and the correct rack interface position.
- Use shielded Category 5 or better cable and an RJ45 copper switch port; do not connect it to the 146031-02 fiber path.
- Record the TDI firmware, rack configuration, IP information and software communication settings before replacement.
- Where corrosive-environment contact plating is a requirement, review whether the 146031-03 execution is specified by the site design.
Replacement
- Back up the 3500 rack configuration and network addressing before removing the TDI or rear I/O module.
- Label every network and rack connection, then confirm the replacement carries 146031-01 on the product label.
- Inspect the RJ45 plug, cable shield and switch port for damage or negotiation faults.
- Reinstall under the 3500 service procedure and confirm TDI communication, rack status and host data collection.
- Test any buffered or transient-data workflow used by the site before returning the rack to normal monitoring.
FAQ
Why can 146031-01 show Ethernet link but no rack data?
A correct physical link does not prove the TDI IP settings, rack configuration, host permissions or data-service configuration are correct.
Can 146031-02 replace 146031-01?
No direct media substitution should be assumed. 146031-02 is the fiber-optic I/O execution and requires the matching fiber network design.
What should be photographed before ordering 146031-01?
Photograph the TDI front label, the rear I/O label, rack position, RJ45 connection and any site asset or firmware markings.
What network tests are appropriate after fitting 146031-01?
Verify link speed, address reachability, host connection, rack configuration access and the site’s transient or static data collection.
When should 146031-03 be considered instead of 146031-01?
Only when the installation specification calls for the copper version with gold-plated connectors and the hardware compatibility has been reviewed.
