Bently Nevada 3500/22M 138607-01 Transient Data Interface

Bently Nevada 3500/22M 138607-01 Transient Data Interface

Item NO.: 3513374
Inquiry

Warranty: 1 year


Condition : brand new in factory sealed box


Email: sales@mvme.cn


Chat online: +86 18030175807

Detail

  • Product NameBently Nevada 3500/22M 138607-01 Transient Data Interface
  • Item NO.3513374
  • Weight0.9100 kg = 2.0062 lb = 32.0993 oz
  • CategoryTSI
  • BrandBently Nevada
  • Creation Time2026-01-07
  • Bently Nevada Transient Data Interface
3500/22M 138607-01
Bently Nevada · 3500/22M Transient Data Interface

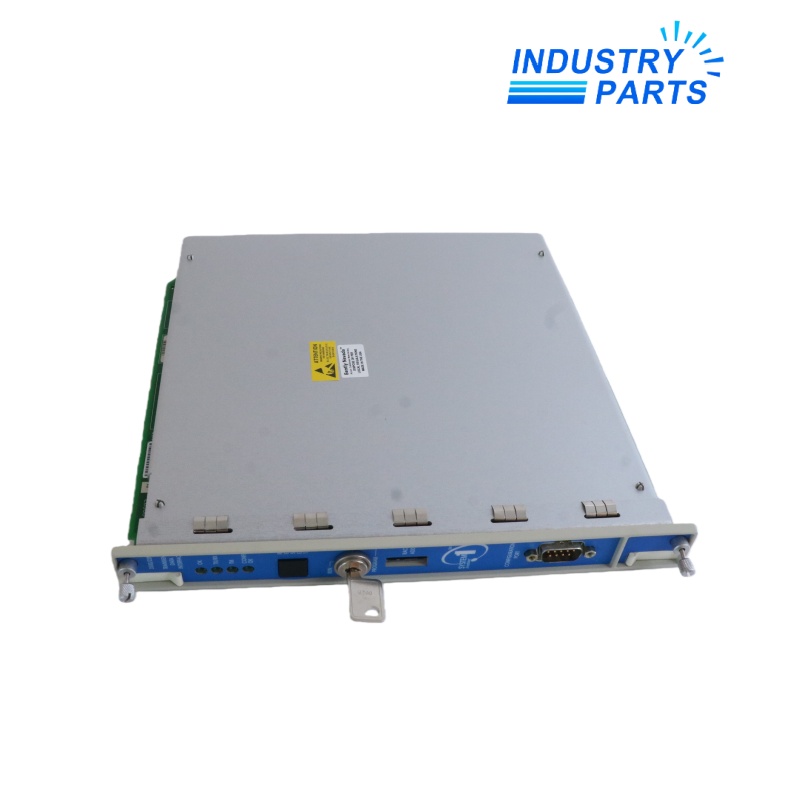

Bently Nevada 3500/22M 138607-01 Legacy Standard Transient Data Interface Module

The Bently Nevada 3500/22M 138607-01 is the earlier Standard Transient Data Interface used in the 3500 rack for rack configuration and machinery-data collection.

Engineering Snapshot

Key Information

Manufacturer 3500/22M documentation identifies the Standard TDI as the interface between the 3500 monitoring system and compatible configuration and condition-monitoring software.

Earlier Bently Nevada service documentation identified 138607-01 as the Standard TDI. The current Baker Hughes datasheet now lists 288055-01 as the Standard TDI spare.

Module Purpose

Functions

Rack Configuration
Supports configuration of the 3500 protection system.
Machinery Data Retrieval
Collects steady-state and transient data from compatible M-series monitors.
Communication Processor
Combines rack interface and data-collection functions.
Non-Critical Path
Its operation does not determine normal automatic machinery protection.
Manufacturer Technical Data

Specifications

Manufacturer Bently Nevada, a Baker Hughes company
Part Number 3500/22M 138607-01
Product Type Legacy Standard TDI main module
Rack Position Slot 1, next to the power supplies
Power Consumption 10.5 W
Front Configuration Port USB-B
USB Baud Rate 115.2 kbaud maximum, auto-baud capable
Rack Addresses 127 possible addresses
Operating Temperature -30°C to +65°C
Storage Temperature -40°C to +85°C
Humidity 95%, non-condensing
Rack & Wiring

Installation

Install 3500/22M 138607-01 in Slot 1 next to the power supplies with the correct TDI rear I/O module. When upgrading from a 3500/20 RIM, remove the old RIM I/O before inserting the TDI I/O.
Service Status

Lifecycle

Earlier manufacturer documentation identifies 138607-01 as the Standard TDI. The current Baker Hughes datasheet lists 288055-01 as the Standard TDI spare, so 3500/22M 138607-01 should be treated as legacy hardware.
Buyer & Maintenance Questions

FAQ

1. Is 3500/22M 138607-01 the current Standard TDI spare?
No. Current documentation lists 288055-01 as the Standard TDI spare.
2. Where is 3500/22M 138607-01 installed?
Slot 1 next to the power supplies.
3. Does TDI failure stop automatic protection?
Baker Hughes states the TDI is not part of the critical monitoring path.
4. Which rear I/O options are used with the current TDI architecture?
Copper 10Base-T/100Base-TX or 100Base-FX fiber-optic Ethernet I/O modules.
5. What should be checked before replacing 3500/22M 138607-01?
Verify TDI revision, rear I/O type, rack compatibility and the current replacement part.
