Point isolation
Each relay point has an independent field circuit boundary.

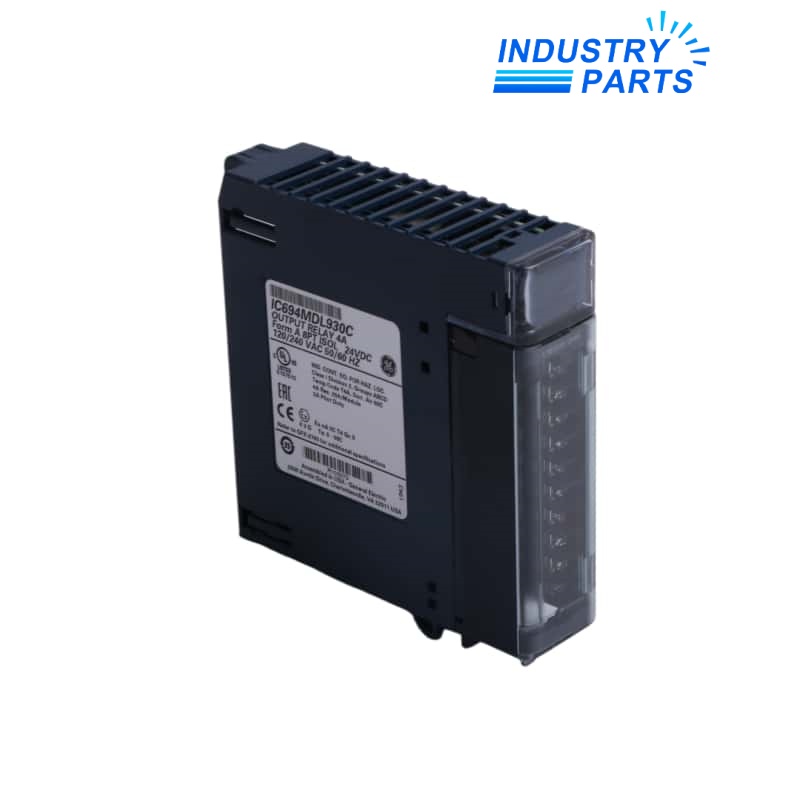

GE General Electric IC694MDL930 Relay Output Module
Item NO.: 3626677
Warranty: 1 year
Condition : brand new in factory sealed box
Email: sales@mvme.cn
Chat online: +86 18030175807
Detail
- Product NameGE General Electric IC694MDL930 Relay Output Module
- Item NO.3626677
- Weight0.3000 kg = 0.6614 lb = 10.5822 oz
- CategoryPLC
- BrandGE General Electric
- Creation Time2026-04-27
PACSystems RX3i / Series 90-30 I/OEight-Point Isolated Normally Open Relay Output Module
EIGHT ISOLATED RELAY OUTPUTS · NORMALLY OPEN · 4 A
Emerson GE Fanuc IC694MDL930 PACSystems RX3i Eight-Point Relay Output Module
An eight-point isolated relay-output module for discrete load switching in PACSystems RX3i and documented Series 90-30 installations.
PRODUCT CONTEXT
Overview
IC694MDL930 provides eight isolated, normally open relay outputs. Each point is electrically separated, allowing the module to switch documented field loads without grouping the outputs under a shared contact common.
The base catalog identity belongs to the IC694 I/O family used with PACSystems RX3i and compatible Series 90-30 configurations. Field voltage, load type and protective devices remain part of the installed circuit design.
CONTROLLED DATA
Specs
Manufacturer
Emerson / GE Fanuc
Exact model
IC694MDL930
I/O family
IC694 discrete output
Output points
8
Output technology
Electromechanical relay
Contact form
Normally open
Isolation
Individually isolated outputs
Published current rating
4 A
System context
PACSystems RX3i / Series 90-30
FUNCTIONAL DISTINCTIONS
Features
Normally open switching
Contacts remain open until the corresponding output is energized.
Mixed field-load planning
Isolation permits separate documented field circuits within the module ratings.
Serviceable terminal record
The removable terminal wiring can be mapped before the module is exchanged.
FIELD CONTEXT
Applications
Interposing relay duties
Switching discrete loads where isolated dry-contact behavior is required.
Mixed-voltage panels
Keeping separate field circuits isolated according to the approved wiring design.
Legacy I/O maintenance
Preserving an established IC694 rack and point assignment during controlled replacement.
SERVICE SEQUENCE
Lifecycle
Map
Capture the IC694MDL930 label, slot, terminal numbers, field voltage and load details for all eight points.
Protect
Isolate every external source and verify suppression for inductive loads before disturbing the terminal assembly.
Test
Command each used point and verify contact operation, field-device response and safe de-energization.
CUSTOMER QUESTIONS
FAQ
What should accompany an IC694MDL930 quotation?
Send the full module label, rack and slot, terminal map, field voltages, load currents and requested quantity.
Can IC694MDL940 replace IC694MDL930 because both use normally open relays?
Do not assume interchangeability; the channel count, point rating, wiring and project allocation differ.
Why is each load record important for IC694MDL930?
Relay suitability depends on the connected voltage, steady current, inrush and load type rather than the point count alone.
Does IC694MDL930 share a common across all outputs?
No. The manufacturer identifies the eight relay outputs as isolated, so the installed terminal arrangement must preserve that separation.
What proves IC694MDL930 is ready after service?
Documented contact operation, correct field voltage at every point and successful load/interlock tests complete acceptance.
