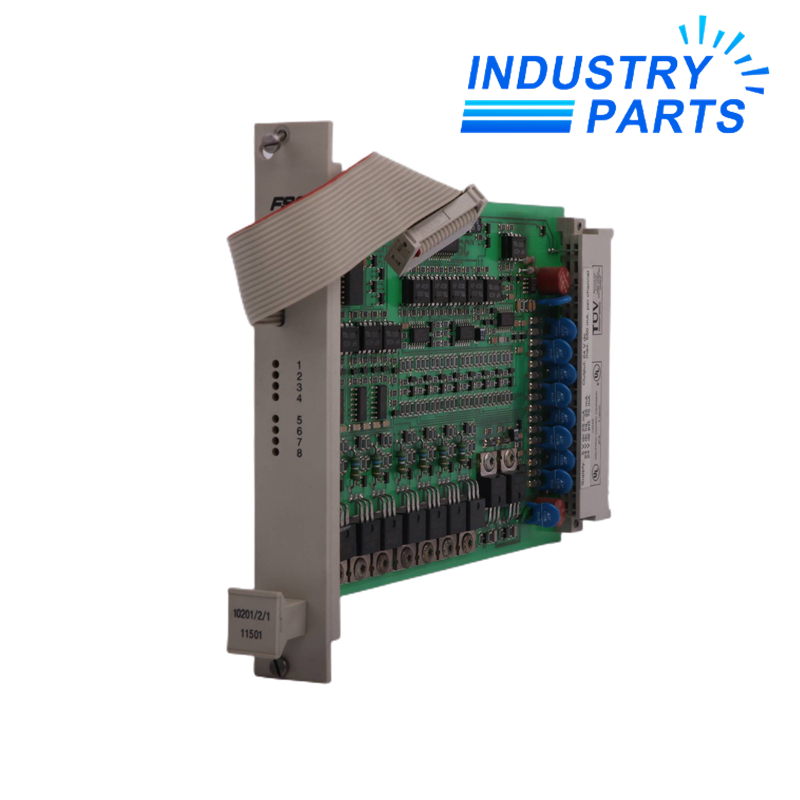

Honeywell 10201/2/1 FC-SDO-0824 11502 Digital Output Module
Item NO.: 10201/2/1 FC-SDO-0824 11502
Warranty: 1 year
Condition : brand new in factory sealed box
Email: sales@mvme.cn
Chat online: +86 18030175807
Detail
- Product NameHoneywell 10201/2/1 FC-SDO-0824 11502 Digital Output Module
- Item NO.10201/2/1 FC-SDO-0824 11502
- Weight0.0000 kg = 0.0000 lb = 0.0000 oz
- CategoryDCS
- BrandHoneywell
- Creation Time2024-11-13
- Honeywell FC-SDO-0824 is a Safety Manager safe digital-output module for approved field loads.
Honeywell Safety Manager Output
FC-SDO-0824 · Safe 24 VDC Digital Output
A Safety Manager solid-state source output module for safety-related field actuation.
Product Identification
| Parameter | Identification |
|---|---|
| Model | FC-SDO-0824 |
| Legacy identifiers in title | 10201/2/1 and 11502 |
| Manufacturer | Honeywell |
| System family | Safety Manager |
Engineering Data
| Parameter | Official specification |
|---|---|
| Output count | 8 |
| Output type | 24 VDC solid-state source, short-circuit proof |
| Output grouping | Two groups of four with independent secondary de-energizing means |
| Maximum channel current | 550 mA |
| Maximum load power | 13 W |
| Supported load | Resistive or inductive; suppression diode per output |
| Lamp load | 120 mA / 2.9 W |
| Maximum load capacitance | 1 µF |
| ON-state voltage drop | Less than 2.0 V at 500 mA |
| OFF-state current | Less than 0.1 mA |
| WDG current | 8 mA |
| 5 V supply current | 25 mA |
| Internal 24 V current | 25 mA |
| External 24 V current | 70 mA excluding load |
| Mechanical size | 4 TE, 3 HE |
| Approvals | CE, TÜV, UL, CSA and FM |
Functions
- Continuously tests the output de-energizing path.
- Monitors channel interaction and suppression components.
- Uses grouped secondary shutdown hardware for safety action.
- Requires the documented internal and field-supply arrangement for complete self-test coverage.
Applications
Used to drive approved safety-related final elements such as solenoids and interposing relays. The load circuit must follow the project's de-energize-to-trip and suppression design.
Lifecycle
Confirm the legacy identifiers, Safety Manager release, supply wiring, output grouping and connected load before replacement. Complete the approved output proof test after installation.
