Honeywell CC-TDIL11 51308388-175 Digital Input Module
Warranty: 1 year
Condition : brand new in factory sealed box
Email: sales@mvme.cn
Chat online: +86 18030175807
Detail
- Product NameHoneywell CC-TDIL11 51308388-175 Digital Input Module
- Item NO.CC-TDIL11
- Weight0.0000 kg = 0.0000 lb = 0.0000 oz
- CategoryDCS
- BrandHoneywell
- Creation Time2025-08-17
- Twelve-inch redundant Series C IOTA for 32-channel 24 VDC digital-input service.

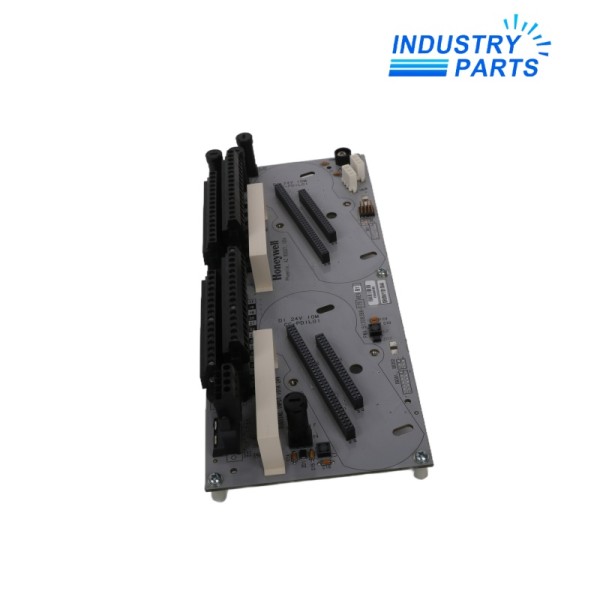

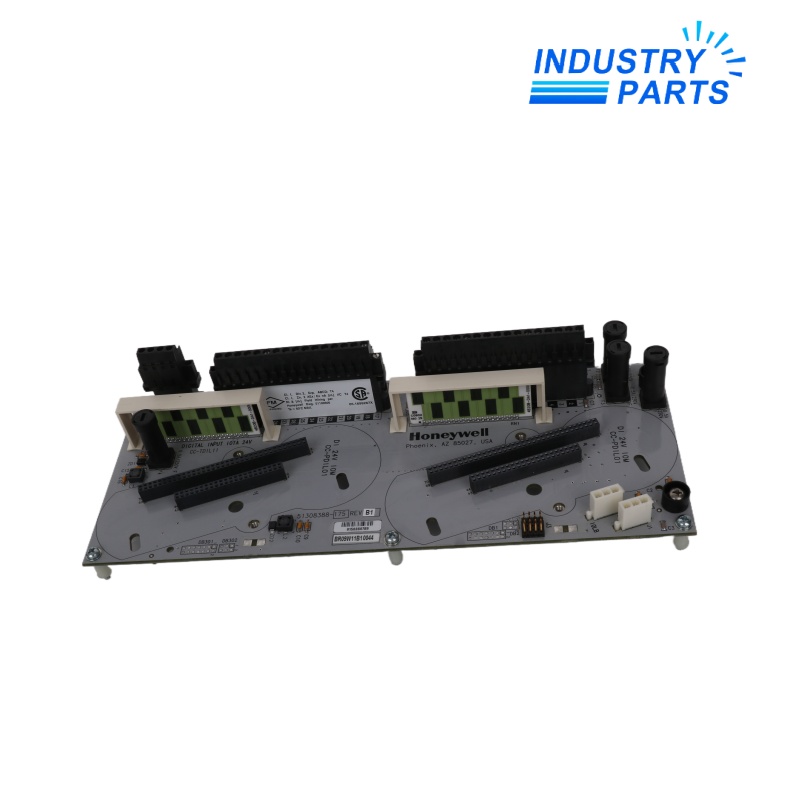

Honeywell CC-TDIL11 51308388-175 Digital Input Module
Twelve-inch redundant Series C IOTA for 32-channel 24 VDC digital-input service.
Product Identification
Honeywell CC-TDIL11 is the redundant twelve-inch IOTA for the Series C 24 VDC digital-input function.
The assembly is used with CC-PDIL01 for standard 24 VDC digital input and with CC-PDIS01 where sequence-of-events functionality is required. The installed IOM provides input processing and diagnostics; CC-TDIL11 provides the redundant mounting and field-termination platform.
The complete assembly supports thirty-two input channels, open-wire detection with the applicable IOM, field-power selection and galvanic isolation.
Engineering Data
| Model | CC-TDIL11 |
| Honeywell part number in existing title | 51308388-175 |
| Product form | Digital Input IOTA |
| Configuration | Redundant |
| Nominal IOTA size | 12 inches |
| Approved standard DI IOM | CC-PDIL01 |
| Approved SOE IOM | CC-PDIS01 |
| System input channels | 32 |
| DI field-power range | 18 to 30 VDC |
| Guaranteed ON sense | 13 VDC minimum or 3 mA minimum |
| Guaranteed OFF sense | 5 VDC maximum or 1.2 mA maximum |
| Input impedance with paired IOM | 4.2 kΩ |
| Galvanic isolation | 1500 VAC RMS or ±1500 VDC |
| Isolation technique | Optical in the IOM |
| Input-filter and isolation delay | 5 ms ±20% |
| Series family | Experion PKS Series C |
| Installation environment | Industrial control cabinet |
| Series C internal ambient limit | 0 to 60 °C |
| Transportation and storage limit | -40 to 85 °C |
| Relative humidity | 5 to 95%, non-condensing |
| Enclosure classification | IP20 / NEMA 1 when installed as specified |
Functions
- Provides redundant IOM mounting for the 24 VDC digital-input function.
- Terminates thirty-two field input circuits.
- Supports internal or external field-power selection in the documented arrangement.
- Works with IOM open-wire detection and invalid-PV status handling.
- Supports direct or reverse input indication through the configured IOM.
- Provides the physical platform for standard or SOE digital-input service.
System Integration
- Select CC-PDIL01 for standard 24 VDC DI or CC-PDIS01 for the approved SOE function.
- Check field voltage, wet/dry contact arrangement, excitation supply and common connections against the project drawings.
- For redundancy, verify both IOM positions, switchover behavior and diagnostic reporting.
- Confirm open-wire resistor and field-resistance requirements for every circuit where open-wire detection is enabled.
- Commission channel state, inversion, alarm behavior, SOE timestamping where applicable and bad-PV handling.
Applications
- Redundant 24 VDC contact inputs.
- Switch and relay status monitoring.
- Sequence-of-events inputs with CC-PDIS01.
- Open-wire monitored field circuits.
- High-availability Series C input cabinets.
Lifecycle
Replace by exact IOTA model unless Honeywell migration documents specify a complete IOM/IOTA conversion.
Before changing the assembly, record redundant IOM revisions, field-power selection, channel wiring and open-wire components.
After installation, test every channel and both redundant module positions rather than relying only on a healthy module status indication.
