ABB AGDR-71C Gate Driver Control Board
01Product Identification

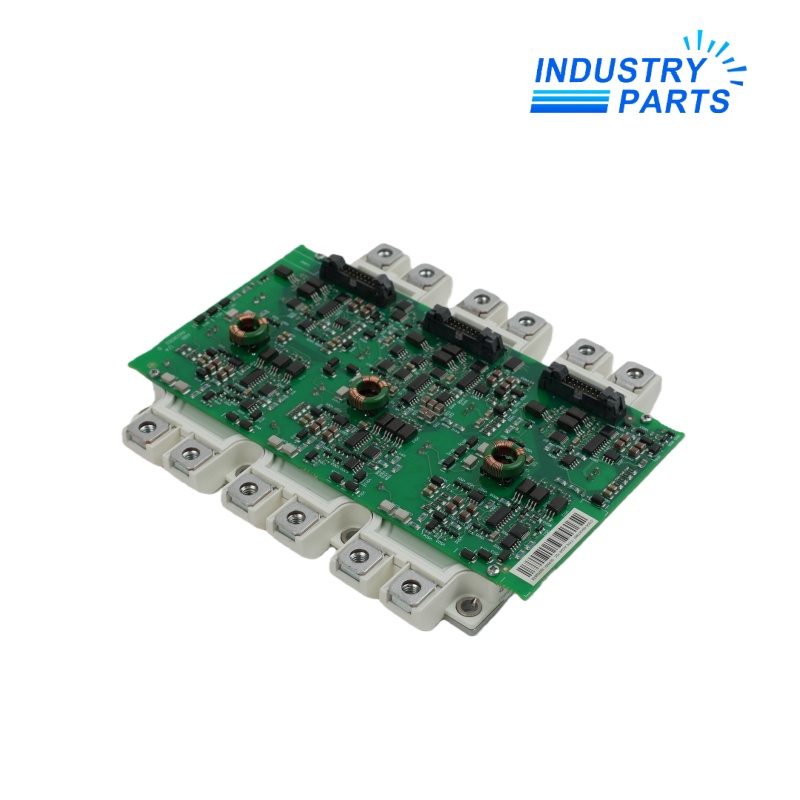

ABB AGDR-71C identifies a gate driver control board used in selected ABB ACS800 EconoPACK+ IGBT module assemblies. ABB hardware manuals define AGDR as the board that drives the output semiconductors, while ABB Drives Service notices pair the -71C board with specific FS225, FS300, and FS450 IGBT module spare kits.
02Key Features
Design and Functions
- AGDR is the gate-driver stage between drive control electronics and the output power semiconductors.
- The -71C revision is documented in multiple ABB IGBT module kit combinations, so the board code alone does not identify a complete power-module assembly.
- ABB service notices distinguish earlier thermal-grease kits from later TIM-foil spare kits.
- Correct spare selection depends on the exact IGBT module type, drive module, frame, voltage class, and service implementation date.
- Power-semiconductor service requires approved discharge, isolation, electrostatic, thermal-interface, torque, and test procedures.
- ABB directs users to the Drives Installed Base recommended spare-parts section for current kit selection.
Product Identity
Manufacturer: ABB
Model: AGDR-71C
Product Type: Gate Driver Control Board
03Engineering Data
| Manufacturer | ABB |
|---|---|
| Board Designation | AGDR-71C |
| Product Type | Gate driver control board |
| Primary Function | Control of drive output semiconductor gates |
| Drive Context | Selected ABB ACS800 EconoPACK+ IGBT module assemblies |

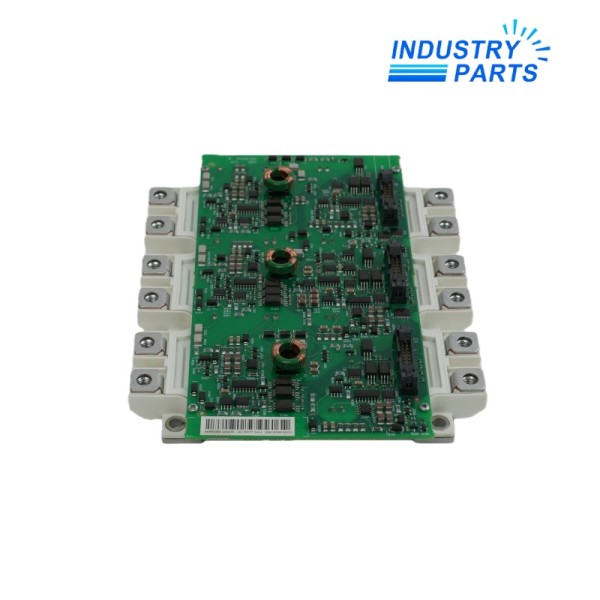

| Documented IGBT Pairing | FS225R12KE3, FS300R12KE3, FS450R12KE3, FS450R17KE3, and FS450R17OE4 in listed service kits |
| Legacy Kit Number | 68569303 for FS225R12KE3/AGDR-71C S |
| Additional Legacy Kit Numbers | 68569346, 68569354, and 68569591 for other documented module pairings |
| TIM-Foil Kit Example | 3AXD50000951406 for FS225R12KE3/AGDR-71C S TIM FOIL SP |
| Service Material Change | ABB updated applicable EconoPACK+ spare kits from thermal grease to TIM foil |
| Selection Method | Use ABB Drives Installed Base recommended spare-parts data for the exact drive |
| Standalone Substitution | Not defined by board code alone; verify the complete IGBT module kit and drive frame |
04System Integration
- Identify the complete ACS800 drive and power-module type from the type label, serial number, frame, and installed IGBT module.
- Use the ABB Drives Installed Base spare recommendation to select the current IGBT/AGDR service kit and thermal-interface material.
- Prove the DC link discharged, apply electrostatic controls, and follow the specified tightening and thermal-interface procedure.
- Inspect related power, interface, supply, and diagnostic boards together with busbars, cooling surfaces, fans, and fiber connections.
- Complete the ABB service checks and controlled low-risk commissioning sequence before applying production load.
05Applications
- Service of documented ABB ACS800 EconoPACK+ IGBT modules.
- Gate-driver replacement within an approved IGBT module repair kit.
- Installed-base drives where AGDR-71C is confirmed by module and board labels.
- Drive repair programs implementing the correct ABB TIM-foil or earlier thermal-interface procedure.
06Lifecycle
- Do not order AGDR-71C solely from the board legend when the complete IGBT module kit is required.
- Record the drive type code, serial number, module type, frame, IGBT part number, AGDR revision, kit number, and existing thermal-interface implementation.
- Use the current ABB Installed Base spare recommendation because service kits and thermal-interface materials have changed.
- Only qualified drive-service personnel should perform this work after the DC link is proven discharged.
- After repair, perform the ABB-specified static checks, gate-driver checks, insulation tests, cooling checks, and controlled drive commissioning.
FAQFrequently Asked Questions
What is
AGDR-71C is an ABB gate driver control board used in selected ACS800 IGBT module assemblies.
Which system or application is it designed for?
It is used inside documented ABB drive power-module configurations and is paired with a specific IGBT module and service kit.
What must be matched before ordering?
Match the complete model or article number, installed hardware revision, electrical ratings, interfaces, wiring, approvals, and project configuration.
What information should be recorded before replacement?
Record the complete drive type and serial number, frame, IGBT module code, AGDR revision, kit number, thermal-interface material, firmware context, and fault history.
How should lifecycle or migration be handled?
Use ABB Drives Installed Base recommendations and the current service kit; do not infer compatibility from AGDR-71C alone.
What should be checked after installation?
Verify discharge, correct kit contents, thermal interface, torque, insulation, gate signals, cooling, diagnostics, motor current, and fault-free controlled operation.
