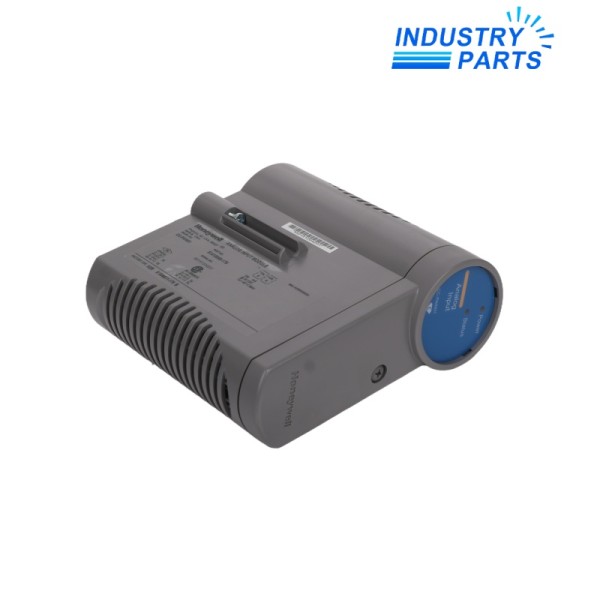

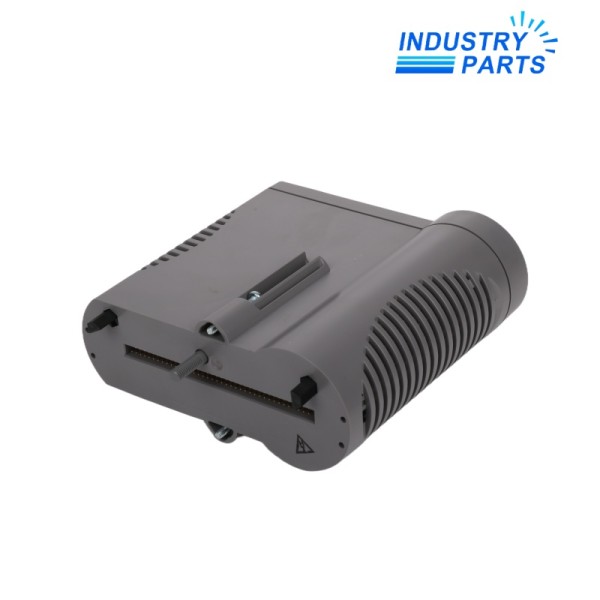

Honeywell CC-PAIN01 Analog Input Module
Item NO.: 3537532
Warranty: 1 year

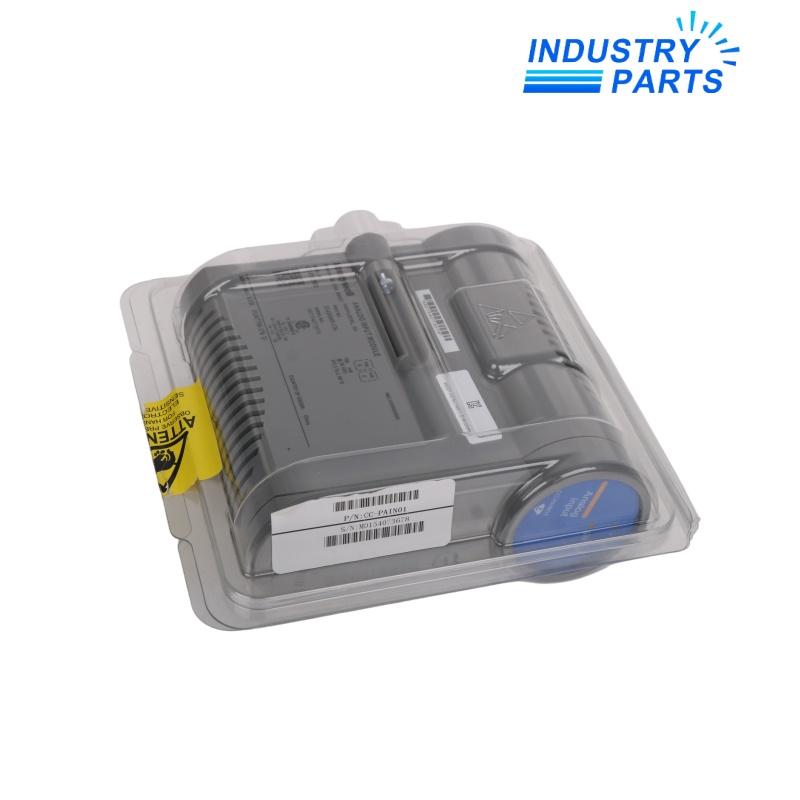

Condition : brand new in factory sealed box
Email: sales@mvme.cn
Chat online: +86 18030175807
Detail
- Product NameHoneywell CC-PAIN01 Analog Input Module
- Item NO.3537532
- Weight2.0000 kg = 4.4092 lb = 70.5479 oz
- CategoryDCS
- BrandHoneywell
- Creation Time2026-02-06
- Honeywell Analog Input Module
Product Identification
CC-PAIN01 is a Honeywell Experion Series-C High-Level Analog Input I/O Module (non-HART) for process control systems, used for high-level 4-20 mA transmitters.
Manufacturer
Honeywell
Category
Series-C Analog Input Module / AI-HL
Channels
16 Channels (single-ended)
IOTA Option
CC-TAIN01 (6") non-redundant, CC-TAIN11 (12") redundant
Engineering Data
| Specification item | Official specification |
|---|---|
| Function | High-level current input acceptance from sensing devices. |
| Input type | Current, for 2-wire or self-powered transmitters. |
| Input channels | 16 channels, 16 single-ended channels. |
| Input range | 4-20 mA (through 200 Ω). |
| Input scan rate | 50 ms. |
| A/D converter | 16-bit resolution. |
| Filter response | Single-pole RC, -3 dB at 6.0 Hz. |
| CMRR (500 Ω source imbalance) | 70 dB, dc to 60 Hz. |
| Normal-mode rejection ratio at 60 Hz | 20 dB. |
| Maximum normal-mode input | ±30 V. |
| Crosstalk (dc to 60 Hz) | -60 dB (channel-to-channel). |
| Common mode imbalance tolerance | DC to 60 Hz, 500 Ω source imbalance per manual specification. |
| Accuracy (CMV=0V) | ±0.075% full-scale at 23.5±2°C; ±0.15% full-scale over 0 to 60°C. |
| Field power and diagnostics | Non-incendive power is supplied without external marshalling; internally protected current limiting circuits for Class 1, Division 2 non-incendive interfacing. |
Functions
- Accepts high-level current signals from 4-20 mA transmitters in process plants.
- Supports optional redundancy through 12-inch redundant IOTA pair design.
- Built-in extensive self-diagnostics and fast loop scan behavior for control quality.
- Provides non-incendive channel power path, reducing additional field marshalling needs for transmitter power.
- Configured by standard Series-C engineering workflows and integrated in Experion PKS ecosystems.
Applications
Transmitters
Flow, pressure, level, and differential pressure transmitter loops using 4-20 mA signals.
Hazardous locations
Class 1, Division 2 non-incendive capable field interface for 4-20 mA process loops.
Spare strategy
Brownfield plants with installed CC-PAIN01 can keep model-level spare compatibility for same-form-factor replacements.
Control architecture
Suitable for mixed channel density planning where non-HART high-level AI is required.
Lifecycle
| Lifecycle topic | Official status / recommendation |
|---|---|
| Lifecycle-change status | CC-PAIN01 appears in Honeywell Series-C lifecycle-change guidance as a module with lifecycle planning requirements. |
| Spares for existing installations | Maintenance section shows CC-PAIN01 in official spare-parts context, indicating availability considerations are addressed through platform planning documents. |
| Replacement and migration policy | The lifecycle table does not mark CC-PAIN01 as a formally superseded-by item in the same way as some other models (for example, CC-PAIH01 -> CC-PAIH02). |
| Replacement model guidance | Honeywell matrices suggest migration planning should verify channel model, function matrix, and pair/compatible IOTA combinations before adopting another AI model for CC-PAIN01 lines. |
| Discontinued date / EOS date | No explicit public end-of-manufacture or end-of-support date was captured in the retrieved official PDFs. |
| Full replacement or technical change | Not a guaranteed one-to-one change. Moving to another AI module (for example HART/voltage versions) is a functional migration and may require firmware, IOTA selection, and parameter updates. |
| Required checks before replacement | For compatible substitution, perform firmware revision checks, controller migration (when applicable), and full control strategy/point mapping review as stated in Honeywell pairing guidance. |
| Recommended migration path | For existing sites, confirm through the current Honeywell lifecycle notice and software release compatibility before stock freeze and replacement approval. |
Related Products
FAQ
Q1: Is CC-PAIN01 fully discontinued?
A1: No explicit official public end-of-manufacture and end-of-support date was found in the retrieved Honeywell PDFs; verify the latest lifecycle notice for formal commitments.
A1: No explicit official public end-of-manufacture and end-of-support date was found in the retrieved Honeywell PDFs; verify the latest lifecycle notice for formal commitments.
Q2: Can CC-PAIN01 be replaced with a direct one-to-one equivalent?
A2: Not automatically. It is listed in lifecycle and compatibility planning guidance, so migration should confirm signal type and firmware/IOTA compatibility.
A2: Not automatically. It is listed in lifecycle and compatibility planning guidance, so migration should confirm signal type and firmware/IOTA compatibility.
Q3: What technical factors must be checked?
A3: IOTA form (CC-TAIN01/CC-TAIN11), channel function mapping, firmware revision pairing rules, and controller release level are mandatory checks.
A3: IOTA form (CC-TAIN01/CC-TAIN11), channel function mapping, firmware revision pairing rules, and controller release level are mandatory checks.
Q4: Is there a fully non-HART substitute?
A4: CC-PAIN01 is non-HART; substitute candidates generally move through AI-HART or mixed AI families only after full function and wiring validation.
A4: CC-PAIN01 is non-HART; substitute candidates generally move through AI-HART or mixed AI families only after full function and wiring validation.
Q5: What change-control actions are recommended?
A5: Prepare a channel mapping sheet, verify firmware green status, run configuration download/rebuild validation, and record factory acceptance evidence.
A5: Prepare a channel mapping sheet, verify firmware green status, run configuration download/rebuild validation, and record factory acceptance evidence.
