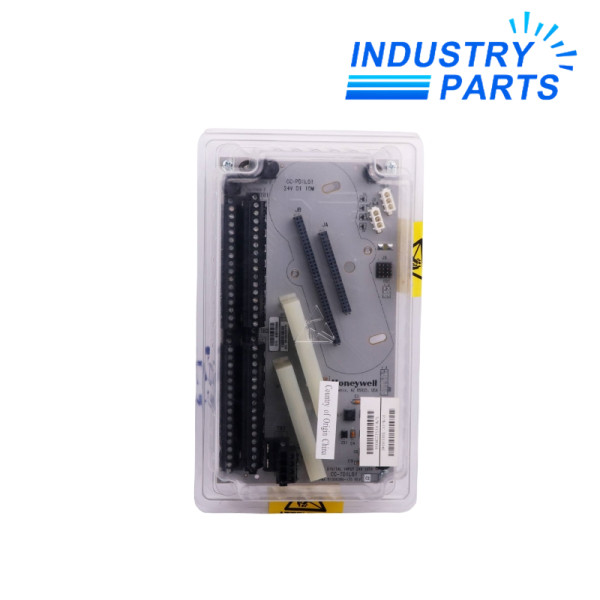

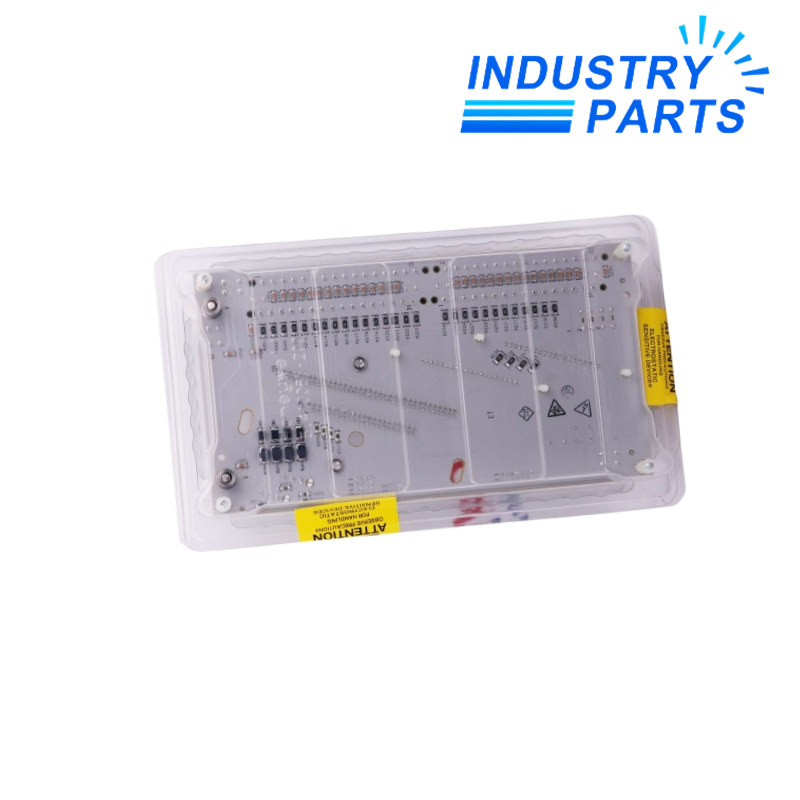

Honeywell DC-TDIL01 Digital Input 24V IOTA Module
Warranty: 1 year
Condition : brand new in factory sealed box
Email: sales@mvme.cn
Chat online: +86 18030175807
Detail
- Product NameHoneywell DC-TDIL01 Digital Input 24V IOTA Module
- Item NO.DC-TDIL01
- Weight0.4000 kg = 0.8818 lb = 14.1096 oz
- CategoryDCS
- BrandHoneywell
- Creation Time2025-02-19
- Honeywell Digital Input IOTA Module
DC-TDIL01
Product Profile
DC-TDIL01 is a 24 V DC digital input IOTA (Input/Output Termination Assembly) module from Honeywell's Experion PKS Series C I/O family. It serves as a non-redundant digital input interface, providing the physical connection and signal conditioning for field devices such as switches, sensors, and relay contacts.
The module is designed to interface directly with DI-24 and DI-SOE OM block types, enabling seamless integration with Honeywell's Series C control system architecture. It features a compact form factor and is mounted directly on the Series C backplane.
The DC-TDIL01 is the non-redundant version of the Series C digital input IOTA, optimized for applications where standard availability is sufficient. It provides reliable digital signal acquisition with built-in fault detection and LED status indication per channel.
- Honeywell Experion PKS Series C
- Digital input IOTA module
- 24 V DC operation
- Non-redundant configuration
- Part No. 51307780-176
Technical Data
Electrical specifications
| Manufacturer | Honeywell Process Solutions |
| Model | DC-TDIL01 |
| Part Number | 51307780-176 |
| Product type | Digital Input IOTA (Non-Redundant) |
| System series | Experion PKS Series C |
| Input voltage | 24 V DC |
| Input voltage range | 18 – 30 V DC |
| Input current (min) | 3 mA |
| Input current (typical) | 0.190 A @ 24 V DC |
| Input impedance | 4.2 kΩ |
| Power consumption | 4.56 W (max) |
| Heat dissipation | 4.22 W |
| Isolation voltage | 250 Vrms (channel-channel) |
| ON-state voltage | ≥ 15 V DC |
| OFF-state voltage | ≤ 5 V DC |
| Input signal types | 5, 12, 24, 48, 60 V DC |
| Response time | ≤ 1 ms (typical) |
| Output relay (optional) | 2 × SPDT, 10 A @ 24 V DC |
Physical & environmental
| Mounting | Series C backplane / IOTA |
| Operating temperature | 0°C to +60°C |
| Storage temperature | -40°C to +85°C |
| Relative humidity | 5% to 95% (non-condensing) |
| Protection rating | IP20 |
| Country of origin | USA |
| Supported OM block types | DI-24 / DI-SOE |
| Redundancy | Non-redundant |
| Hot-swap | Not supported |
System Role
The DC-TDIL01 functions as the physical termination and signal conditioning interface between field devices and the Series C control system. It provides the IOTA (Input/Output Termination Assembly) baseplate that supports the active IOM (Input/Output Module) and connects field wiring to the digital input channels.
The module is designed for non-redundant configurations, providing a cost-effective solution for applications where single-channel availability is sufficient. It interfaces with DI-24 and DI-SOE OM block types, enabling the acquisition of discrete on/off signals from field devices such as limit switches, pushbuttons, and relay contacts.
The DC-TDIL01 features optical isolation between field and logic circuits, protecting the control system from electrical noise and voltage transients. It also includes built-in fault detection and LED status indicators for each channel, simplifying troubleshooting and maintenance.
- Experion PKS Series C I/O
- DI-24 / DI-SOE OM block support
- Non-redundant IOTA
- 24 V DC field interface
- C300 controller compatible
Compatibility
The DC-TDIL01 is designed for seamless integration into Honeywell Experion PKS Series C systems.
Compatible components
| System | Experion PKS Series C |
| Controller | C300 controller |
| IOM module | DC-PDIL51 |
| OM block types | DI-24, DI-SOE |
| Redundant version | DC-TDIL02 |
| Field devices | Switches, sensors, relay contacts |
- The DC-TDIL01 is a non-redundant IOTA module and is not designed for redundant configurations. For redundant applications, consider the DC-TDIL02 variant.
- The module does not support hot-swapping under load. Removal or insertion while the backplane is powered may cause bus transient errors or trigger an I/O fault.
- It interfaces with DI-24 and DI-SOE OM block types for digital signal acquisition and sequential event recording.
- Logic polarity (positive/negative) is configurable through the module's internal settings or the system controller's I/O mapping software.
Applications
The DC-TDIL01 is widely deployed in process and discrete control applications requiring reliable digital input acquisition.
FAQ – Frequently Asked Questions
It is a digital input IOTA (Input/Output Termination Assembly) module that provides the physical termination and signal conditioning interface for field devices in Honeywell Experion PKS Series C systems.
The DC-TDIL01 is a non-redundant module. For redundant applications, the DC-TDIL02 variant is available.
No. The module is not designed for hot-swapping. Removal or insertion while the backplane is powered may cause bus transient errors or trigger an I/O fault.
It supports DI-24 and DI-SOE OM block types for digital signal acquisition and sequential event recording.
The complete part number is 51307780-176 .
The typical response time is ≤ 1 ms , ensuring deterministic status reporting for critical process interlocks and alarm sequences.
