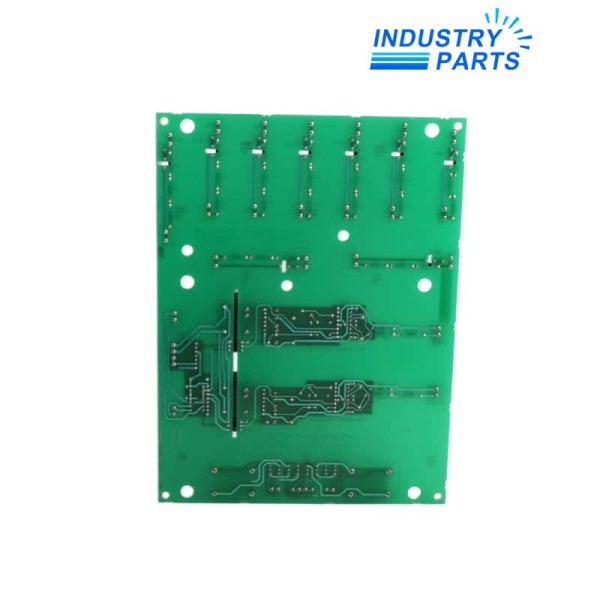

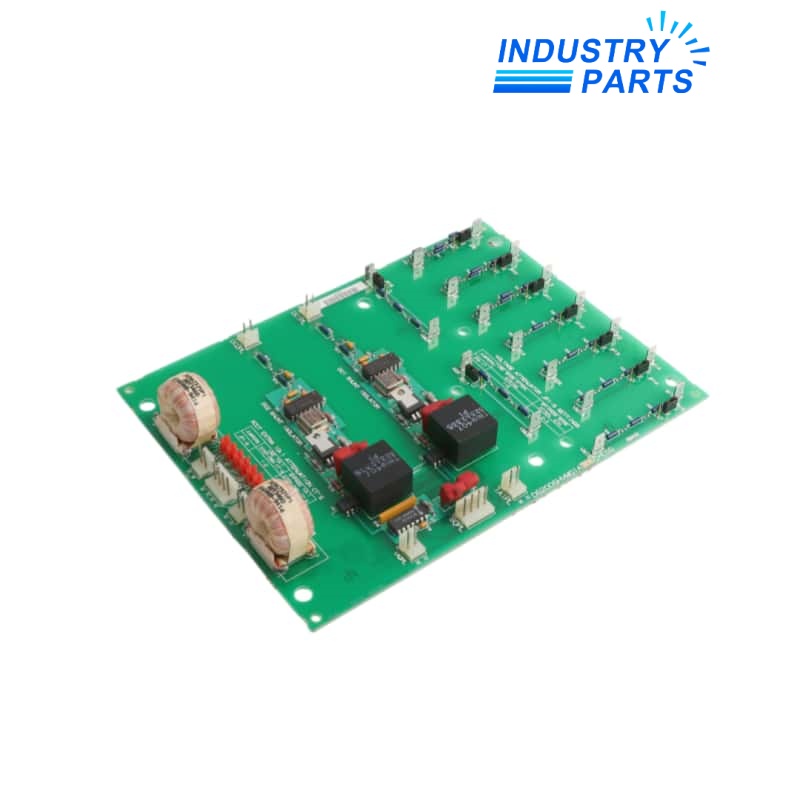

General Electric DS200SHVMG1ACC Voltage M-frame Interface Board

General Electric DS200SHVMG1ACC Voltage M-frame Interface Board

The DS200SHVMG1ACC is a high-voltage M-frame interface circuit board developed by General Electric for the Mark V turbine control system. It is used to interface the SCR bridge of M-frame drives with auxiliary power and control components such as the DCFB or SDCI boards and the PCCA power connect card. The DS200SHVMG1ACC converts low-level shunt signals (-500 to +500 mV) into differential frequency outputs (0–500 kHz) through onboard voltage-controlled oscillator (VCO) circuits. It also provides 10:1 current transformer attenuation for AC line current monitoring and supports flexible configuration via 17 onboard jumpers for different attenuation and control requirements.

The DS200SHVMG1ACC is primarily applied in industrial power generation and turbine control environments, especially within gas and steam turbine systems. It is widely used in the energy and utility sectors, including power plants, grid-scale generation facilities, and heavy industrial operations that rely on GE Mark V control platforms. The board supports precise signal processing and reliable high-voltage interface control, making it suitable for critical applications in turbine excitation systems and large-scale rotating machinery control.

➥ Product Information

Product Name: General Electric DS200SHVMG1ACC Voltage M-frame Interface Board

Product Model: DS200SHVMG1ACC

Product Parameters: Voltage M-frame Interface Board

Estimated Shipping Size: 8.2 x 12.2 x 6 cm

Manufacturer: General Electric

Weight: 0.36 kg

Place of Shipment: Xiamen, China

Delivery Time: 1-3 days

Quantity: 100% New Original

Minimum Order Quantity: 1pc

Shipping Method: DHL\UPS\Fedex\EMS\Others
