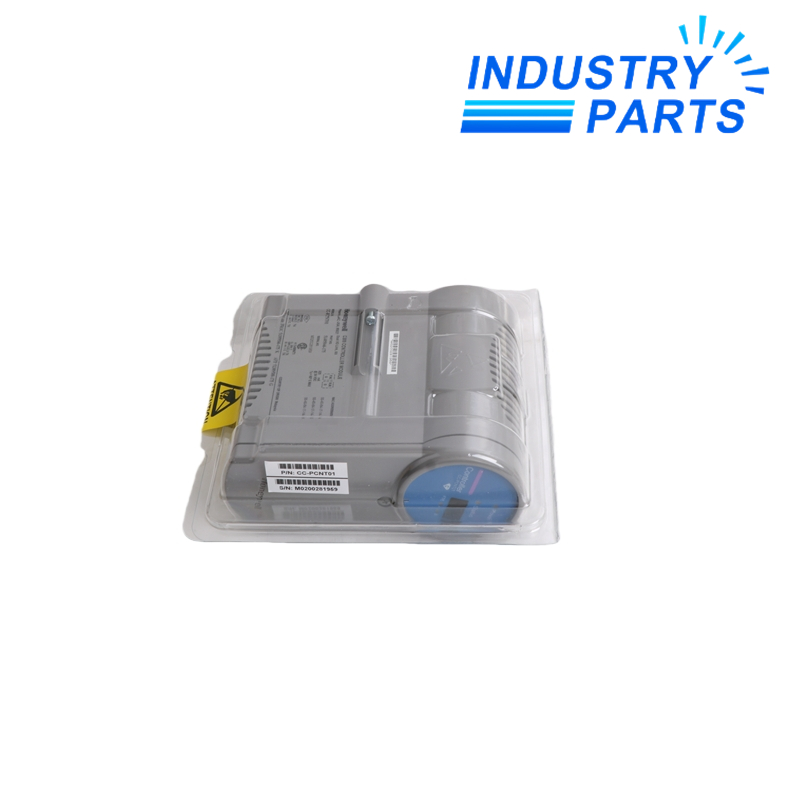

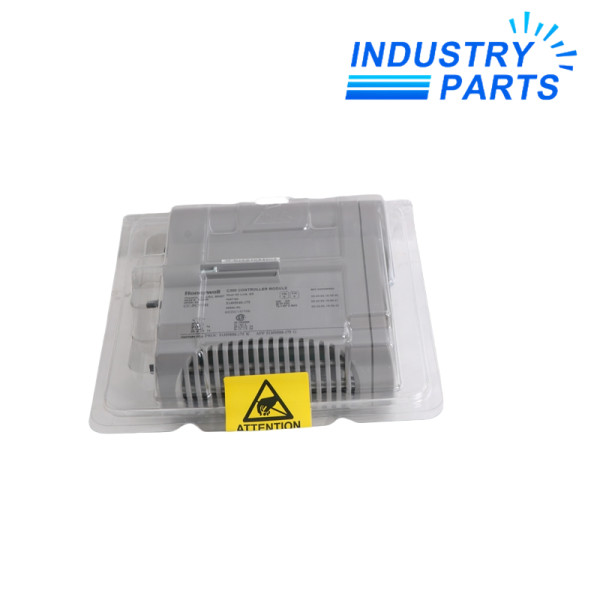

HONEYWELL CC-PCNT05 51308592-176 Controller Module
Warranty: 1 year
Condition : brand new in factory sealed box
Email: sales@mvme.cn
Chat online: +86 18030175807
Detail
- Product NameHONEYWELL CC-PCNT05 51308592-176 Controller Module
- Item NO.CC-PCNT05 51308592-176
- Weight0.0000 kg = 0.0000 lb = 0.0000 oz
- CategoryDCS
- BrandHoneywell
- Creation Time2025-02-17
- Honeywell C300v5 controller with enhanced performance, security and Control HIVE support for Experion PKS.
CC-PCNT05
Honeywell C300v5 controller with enhanced performance, security and Control HIVE support for Experion PKS.
Overview
CC-PCNT05 is the C300v5 controller at the heart of Honeywell Experion PKS. It operates the deterministic Control Execution Environment (CEE), executing process control strategies on a constant and predictable schedule.
The controller supports conventional C300 deployment, traditional 1:1 redundancy and Control HIVE architectures. Honeywell positions it for continuous, batch, advanced-control and smart-field-device integration applications.
Specifications
| Manufacturer | Honeywell |
|---|---|
| Model | CC-PCNT05 / C300v5 |
| Form factor | Series C, IOTA-mounted |
| Execution environment | Honeywell Control Execution Environment (CEE) |
| Execution capacity | 9000 XUs |
| User memory | 32,768 MU |
| Tagged blocks | Up to 4095 |
| Standard execution period | 50 ms; 20 ms not supported |
| Synchronization time | Approximately 240 s |
| Redundancy switchover | Approximately 500 ms |
| Operating temperature | -40 to +70 °C |
| I/O HIVE capacity | 1500 parameter references; up to 15 CN100 connections |
| Time sources | NTP and PTPv2 |
| SNTP update period | 1 minute |
| PTP update period | 30 seconds |
| Memory backup | CC-SCMB05 |
| Weight | 0 (no public model-specific official value) |
Features
Embedded firewall and ISA Secure CSA Level 2 certification support a hardened controller architecture. A hardware-configurable security lock uses the device-index switches.
Supported integrations include CDA peer-to-peer, EtherNet/IP through EIM, FOUNDATION Fieldbus through FIM4/FIM8, Modbus/TCP through PCDI, Profibus through PGM, Profinet through EIM and VLAN-based I/O HIVE networking.
Honeywell documents enhanced processor performance, additional memory, configuration integrity through hardware and extended-temperature operation for remote or harsh locations.
Applications
Process control across refining, chemicals, power, life sciences, mining and other industries that require deterministic execution, controller redundancy and broad field-device integration.
The Control HIVE option supports modular project execution, controller standardization, resilient networking and flexible I/O assignment.
Lifecycle
Honeywell launched PCNT05 in August 2021 as the enhanced C300 generation. It uses the same footprint as the earlier C300 CC-PCNT02 and introduces the CC-SCMB05 memory backup module.
Honeywell has announced CC-PCNT02 transition to legacy support by 2026 Q2, with off-process migration already available and heterogeneous on-process migration planned from Experion R540. Migration eligibility must be checked against the installed release and Honeywell guidance.
FAQ
Does CC-PCNT05 support redundancy? Yes. Honeywell documents traditional 1:1 redundancy using a dedicated IOTA and Ethernet STP redundancy cable.
Which memory backup module is used? Honeywell specifies CC-SCMB05 for power-loss recovery.
Can it run a 20 ms execution period? No. Honeywell lists 50 ms as the standard period and states that 20 ms is not supported for PCNT05.
