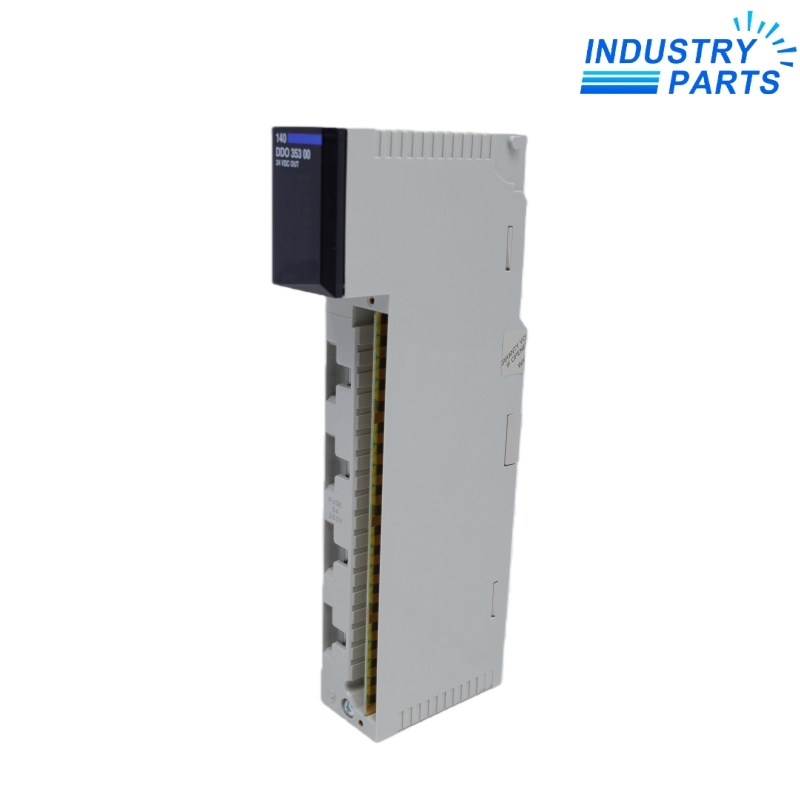

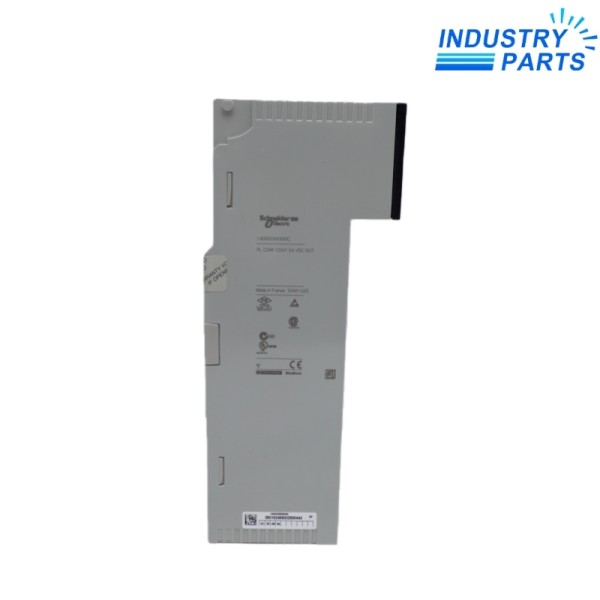

140DDO35300C is the conformal-coated version of the Modicon Quantum 140DDO35300 discrete output module. It provides thirty-two solid-state outputs for 24 V DC positive-logic field circuits and divides the channels into four groups of eight.

The C suffix identifies protective conformal coating for environments that require the coated Quantum variant. The module retains the base model electrical function while the installed rack, field wiring, external protection and application configuration remain part of the complete replacement check.

• Receives output commands from the Quantum backplane and switches thirty-two field-side DC channels.
• Uses positive logic so each active output sources current to its connected load circuit.
• Organizes the outputs as four groups of eight for field-power and common distribution.
• Provides non-interfering channel behavior within the documented module architecture.
• Adds conformal coating to the base 140DDO35300 hardware for the C-designated construction.
• Supports module and channel status handling through the Modicon Quantum control system.

• De-energize the Quantum rack and every associated field-power group before inserting or removing the module.
• Confirm that the slot and project are configured for the 140DDO35300 output profile.
• Map each group of eight channels to the correct field supply and common arrangement.
• Retain suitable branch protection and verify that connected loads remain inside the documented output ratings.
• Use the C suffix when conformal coating is required; do not substitute an uncoated module without an environmental review.
• After installation, test the four output groups separately and confirm controller diagnostics before returning the process to service.

• The Quantum platform is a mature installed-base system, so the exact module suffix and rack configuration should be preserved for service planning.
• Schneider Electric identifies BMXDDO3202K as the replacement reference for the base 140DDO35300 function; migration requires a Modicon X80 architecture review rather than a direct Quantum slot exchange.
• A migration assessment must include the rack, power supply, controller, remote-I/O topology, terminal wiring and application conversion.
• For an immediate repair, match the full 140DDO35300C designation and inspect the replacement for the coated construction.
• Back up the Unity Pro or Control Expert application and record the complete I/O map before any modernization work.
